Smartflower Solar

Aesthetically Appealing.
Award Winning.
Awe Inspiring.

That is what makes Smartflower a true work of art. Its unique and inspiring form of renewable power generation conveys a strong message of sustainability for your clients, their stakeholders and community. Why wait? Let Smartflower be your green calling card.

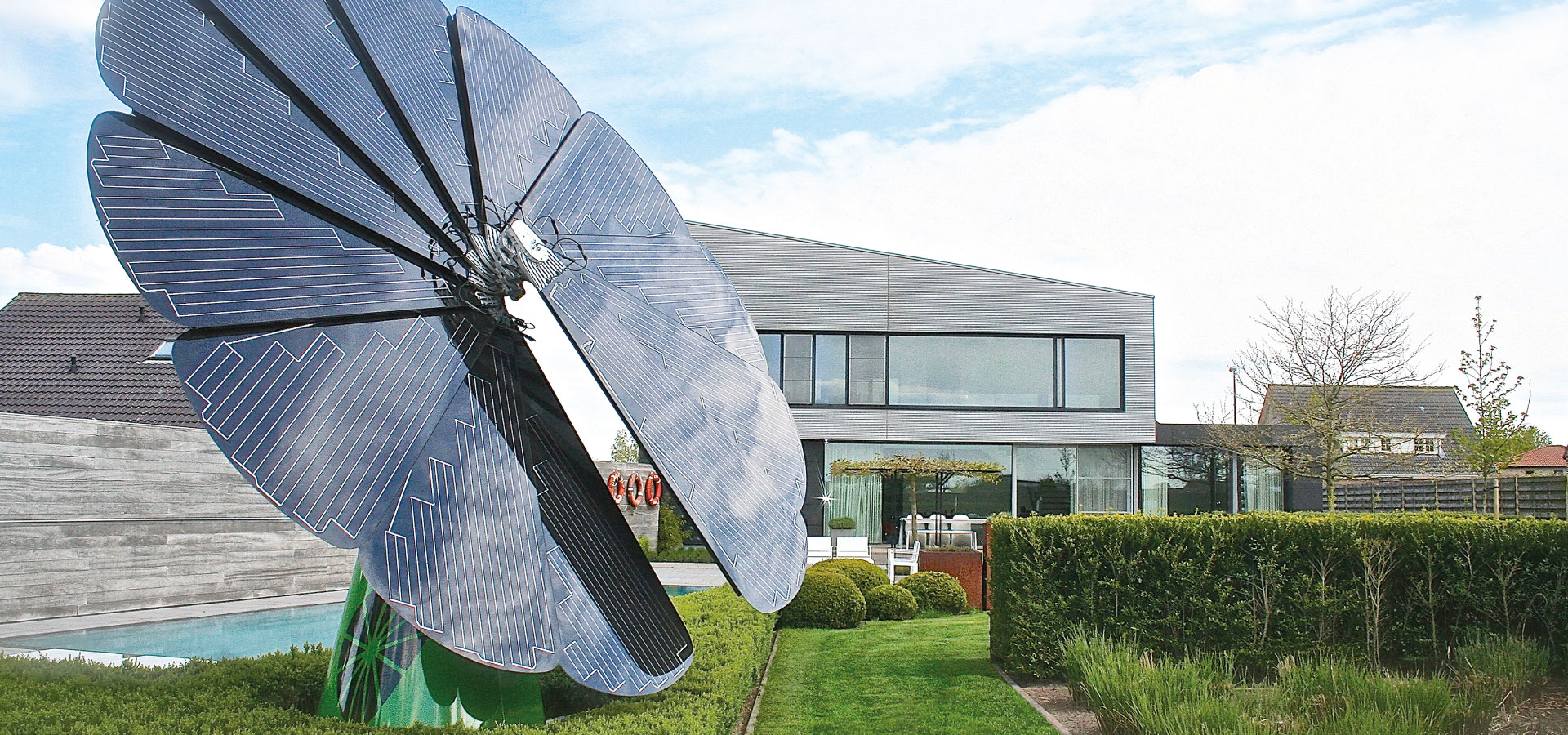

A Fully Integrated, All-In-One Solar System That Can Live Anywhere.

Smart Tracking

Smartflower’s modular panels autonomously follow the sun so they’re always at the optimal angle, generating 40% more energy production than traditional solar.

Smart Safety

Smartflower is weatherproof and continuously monitors wind speeds, automatically folding itself into a secure position to prevent system damage.

Smart Cooling

The system’s solar modules are self-ventilated, which keeps the surface cooler and thus delivers more output when compared to traditional roof-mounted solar.

Smart Cleaning

Smartflower automatically cleans itself every time it folds and unfolds. Brushes on the back of each panel remove any contaminants, leading to increased power production.

Smart System

The integrated control panel automatically sends data on your energy use via the Smartflower Monitor mobile app, helping you decide on how better to use your electricity.

Smart Use

A fully integrated factory pre-packaged solar solution without the complex installation. Smartflower is also portable so that you can move it anywhere.

Smartflower Grid Connected Solution

• Flagship product
• Factory pre-assembled inverter and control system
• Premium mono crystalline silicon PERC modules
• Dual-Axis tracking
• Harmonized for 50Hz and 60Hz applications

Smartflower +Plus

• On-grid or off-grid applications
• Built-in lithium ion 5.5 or 11.4 kWh energy storage options
• Self contained inverter and battery charging capability
• Premium technology-20 year battery life with daily 80% Depth of Discharge
• Off-grid or emergency relief applications
• Generator provision for off-grid solutions

General Specifications for Global Grid-Tied Version

• Nameplate output is 2.5kWp.
• Dual-axis tracking outputs up to 6,400 kWh depending on region and local shading (reference: PV Watts)
• Operating envelope: 5m x 5 m x 5m
• Operating temperature range: -4F (-20C) to 122F (50C)
• Unit weight: 700 Kgs (without batteries)
• Two base colors are available:

General Specifications for Global Grid-Tied Version

• Smart Cleaning: System self cleans the panels automatically twice per day when opening and closing
  • Brushes on the underside of each panel clean the solar panels twice daily, removing dust, sand and snow
  • Automatic cleaning feature improves productivity by 1-2%
• Smart Tracking: Astronomically controlled, Dual-axis sun tracking
  • Tracks the sun from dawn to dusk ensuring that its solar panels are always at an optimal 90-degree angle to the sun with no reflections
  • Time-of-use rates: Smartflower produces power at peak demand times when conventional solar power can’t
• Smart Safety:
  • Wind > 30 mph: fully automatic shifting into horizontal security position
  • Wind > 40 mph: fully automatic folding into security position
  • Emergency-battery included for power outages
  • Very slow moving tracking speed (<0.5 mph)
  • Local E-Stop and main power disconnect can be locked for safety
  • Designed with Equipment and Personal safety in mind - UL, TUV & IEC Certified
• Smart Cooling: PV Modules are naturally rear-ventilated
  • Hot air does not accumulate beneath panels, reducing losses
  • Optimizes kw production with lower thermal losses

• Remote monitoring is now available
  • Cloud based 2-way communication
  • Enables condition based maintenance
  • Ethernet or Cellular modem connections

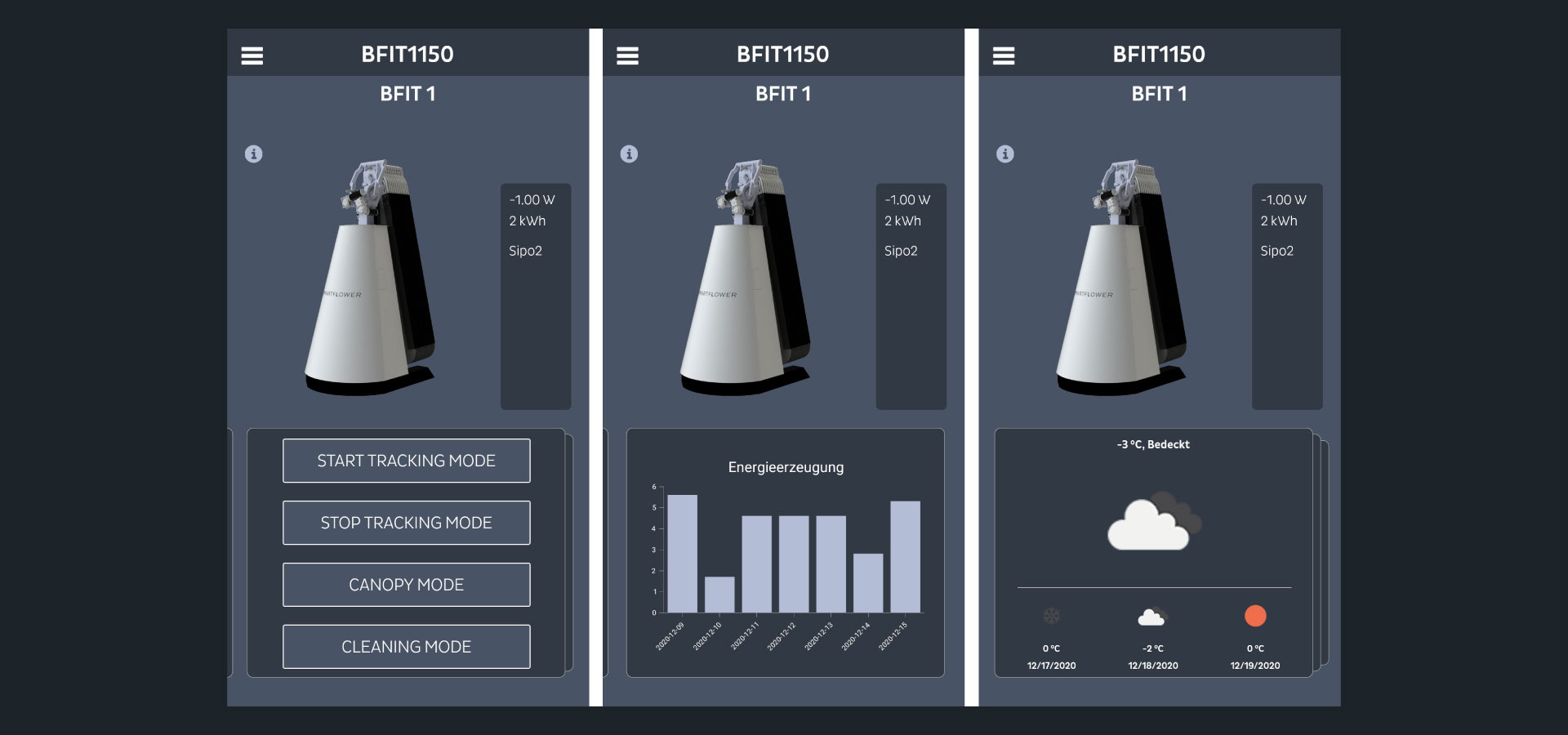

• Phone App
  • Choose between Open, Close, Cleaning and Canopy commands
  • View live and long-term energy production statistics
  • Cloud-based software updates

• Enerjisa Üretim Brings Smartflower to the Sabancı Holding Headquarters In Turkey
• Multiutility Iren Group Embraces Renewable Energy with Smartflower in Turin, Italy
• Denmark’s First Publicly Owned Smartflower Blooms on 100% Renewable Samsø Island
• The Taiwan Cement Company Gives Back to Their Community with the First Smartflower Installation in Taiwan

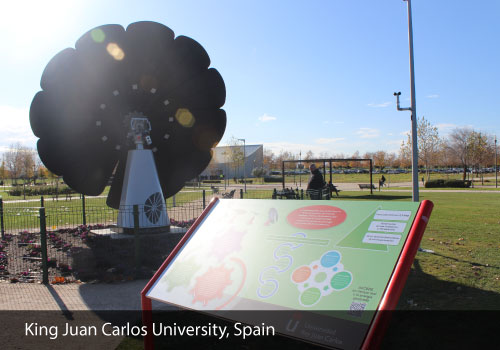

• The King Juan Carlos University in Madrid Commits to Sustainability and Cost Savings with Smartflower
• Smartflower Spends its Fourth Year with Enel Chile

Taiwan Cement Company

With its smart solar panel system and unique flower shapes, the Smartflower is so eye-catching that people not only pay attention to its appearance but are also eager to learn more about it. It’s beautiful and educational, and absolutely perfect for our goal.

Roskilde Festival

As part of Carlsberg Group’s sustainability programme, Together Towards ZERO, we are targeting 100% use of renewable electricity by 2022… we thought the Smartflower was a great way to highlight the importance of renewable electricity.
- Christian Sveigaard, Head of Tuborg in Denmark

Mohawk Group

For students, when you talk about climate change, sometimes that’s a little hard for them to recognize because they’re not directly connected to that. But if they could see a solar flower in their school and learn from it, then that gives them a real-time resource.
- George Bandy Jr., Vice President of Sustainability and Marketing for Mohawk Group
